GWT vs. Dragome vs. TeaVM for Game Programming

Last year I wrote a cross platform game engine. It used a JavaFX based Game Authoring System and had a Java based Game Runtime, which was transpiled to different platforms such as Android, JavaScript over GWT and JavaFX.

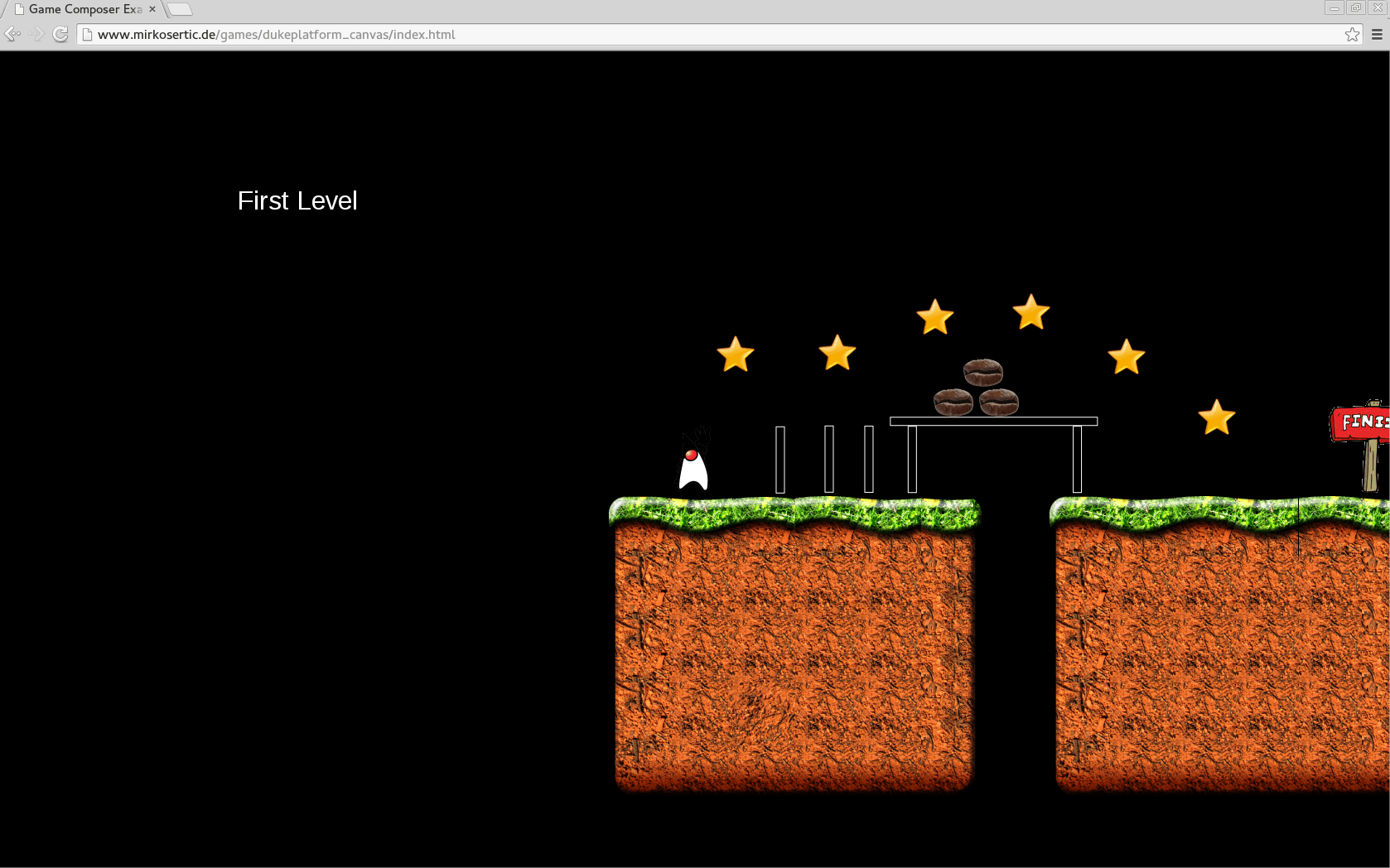

Here is a screenshot of a simple platform game based on the GameEngine, some physics stuff and a lot of Java code:

dukejumprunchrome

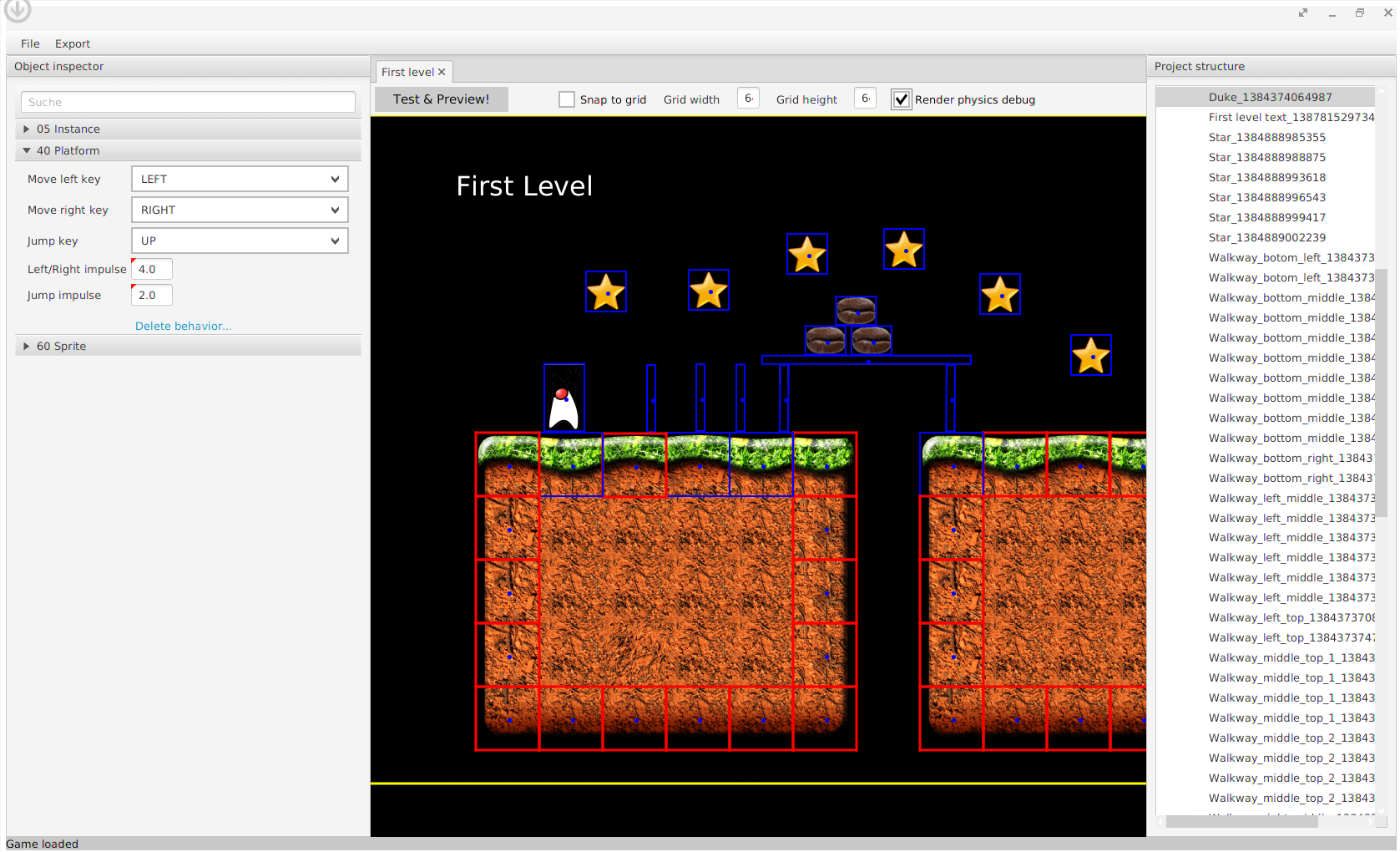

Here is also a screenshot of the JavaFX based game authoring system while editing the example game:

dukejumpruncomposer2014

The original Game Runtime was written in Java 7. Now Java 8 is available, and the question arises: Can I use cool new Java 8 language features such as Lambdas for the Game Engine?

Well, there is an ugly limitation: GWT does even in Version 2.7.0 not support Java 8.

Now, how can we deal with this? In the last months I came across some GWT alternatives such as Dragome and TeaVM. Both of them are Java Bytecode to JavaScript transpiler frameworks. In contrast to GWT which uses Java source code to generate JavaScript, Dragome and TeaVM both use JVM Bytecode to generate JavaScript. So as long as it is valid Bytecode, the program can be translated to JavaScript, even if it is Java 7, Java 8 or other JVM languages.

Thanks to the hexagonal domain-driven Architecture of the Game Engine, I can just add a new GameView to the Engine which will deal with the JavaScript framework specific rendering stuff.

For the beginning, here is a small comparison of GWT, Dragome and TeaVM:

Feature

GWT

Dragome

TeaVM

Generates JavaScript from

Java source code

JVM Bytecode

JVM Bytecode

Requirements for debug

Browser plugin

Any modern browser, no plugin required

-

Incremental compiler

Yes

Yes

Yes

Java 8

-

Yes

Yes

Reflection

-

Yes

-

Dynamic Proxies

-

Yes

-

Bytecode instrumentation

-

Yes

Yes

Code permutations

Yes

-

-

Split compiling

Yes

-

-

Make async calls with no callback

-

Yes

-

JavaScript caching

Perfect cache using hash functions

-

-

JavaScript integration

JSNI(JavaScript comments in source code)

JNSI(explicit JavaScript invocation using a ScriptHelper class)

JSO(access JavaScript objects using annotated Java interfaces)

Beside the fact that Dragome supports reflections and GWT and TeaVM not, all three seems to be equivalent. Let’s take a look at the generated JavaScript code. The new Dragome and TeaVM GameViews both use the HTML5 Canvas, and the Java source code is almost equivalent beside the package names and some method names. Here is the comparison result:

Measurement

GWT

Dragome

TeaVM

Compile time

22822 ms

12268 ms

8226 ms

Size of JS in epitomized mode

2300 kb

4984 kb

2120 kb

Size of JS in optimized mode

1012 kb

4984 kb

1096 kb

Now let’s take a look at runtime behavior. Are all three contenders equivalent in runtime behavior? Well, here are the profiling results(running in Chrome):

Measurement

GWT

Gragome / Dragome without cast check

TeaVM

Frames / sec

60

60 / 60

60

Average time for one game loop cycle

8 ms

10 ms / 8 ms

8 ms

Time for physics and main game systems in the main loop

Obfuscation and in-lining enabled. No results available.

5 ms / 4 ms

4 ms

Time for game view rendering in the main loop

Obfuscation and in-lining enabled. No results available.

5 ms / 4 ms

4 ms

GWT, Dragome and TeaVM are running at 60 frames per second in the browser, as this is the maximum speed for Window.requestAnimationFrame().

Conclusion

Well, both Dragome and TeaVM are viable alternatives to GWT. From my point of view, the TeaVM JSO JavaScript integration feels more natural and encapsulates the JavaScript interaction better than the JNSI notation of Dragome and GWT. TeaVM and GWT have a better JavaScript size optimizing compiler than Dragome, as Dragome always compiles the whole classpath and JRE to JavaScript without dropping un referenced code. This is due to the fact that Dragome supports reflection in contrast to GWT and TeaVM. When it comes to performance, TeaVM, Dragome and GWT produce very effective JavaScript. Dragome comes with some type cast checking, which is enabled by default. Disabling this feature saves some processing time, but might break existing code.

From my point of view, TeaVM is the clear winner for mobile game development. It is as fast as GWT and is not restricted to Java source code. The JavaScript size is very small and the compiler is the fastest one in my test. I really like the JSO syntax for JavaScript interaction as it feels natural and made me productive in a short time. Go TeaVM!

Links:

The source code is available for free on GitHub: github.com/mirkosertic/GameComposer

The Duke example game can be played here:
